200C/IS/450 XL väljapuhketoru
200C/IS/450 XL väljapuhketoru - Image 2

200C/IS/450 XL väljapuhketoru

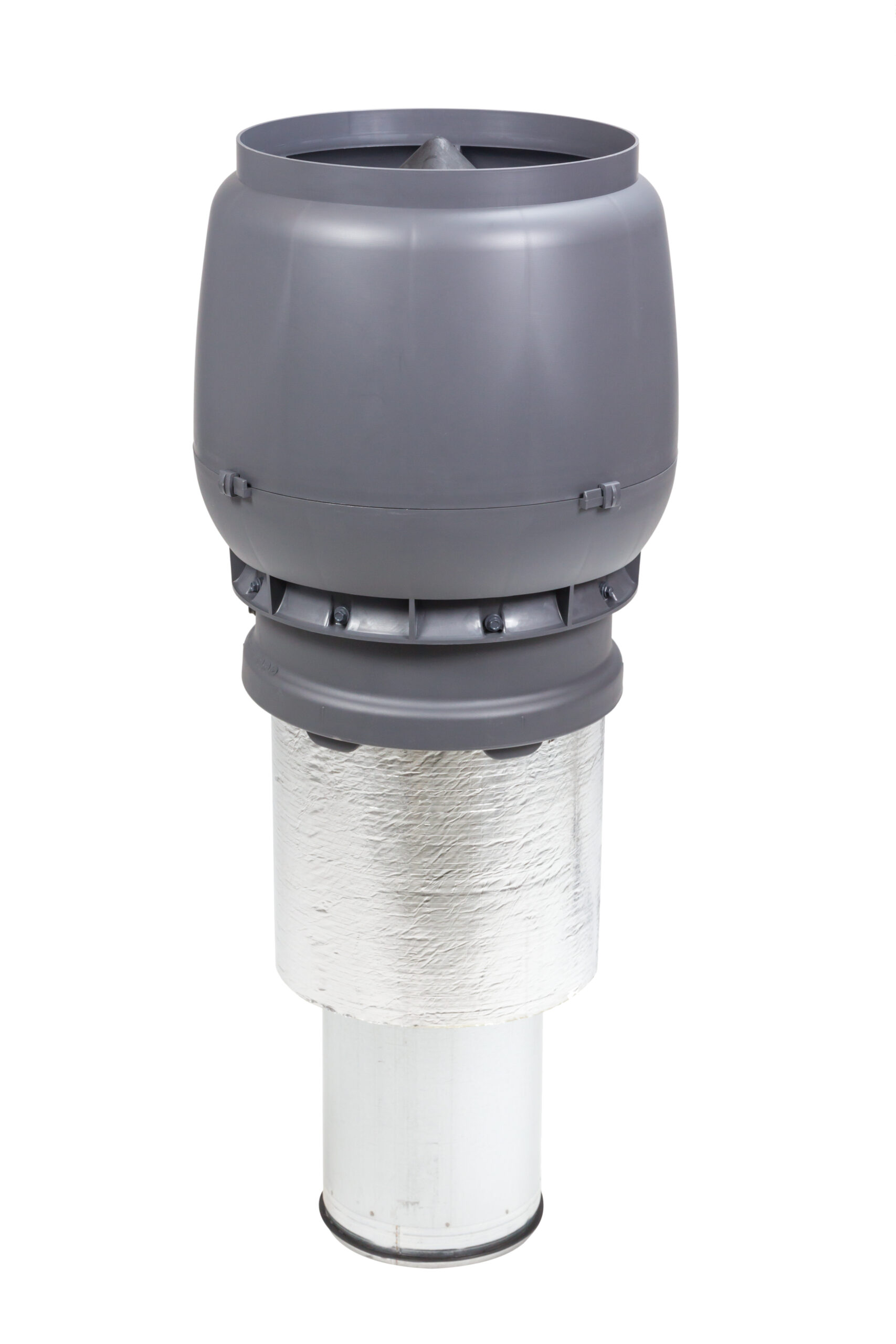

Kirjeldus: Soojustatud väljapuhketoru XL koos mütsiga. Sisemine toru on tsingitud terasest ja varustatud tihendiga. Paigaldatakse plekksepa poolt valmistatud Ø 315 mm avaga plekk-koonusesse.

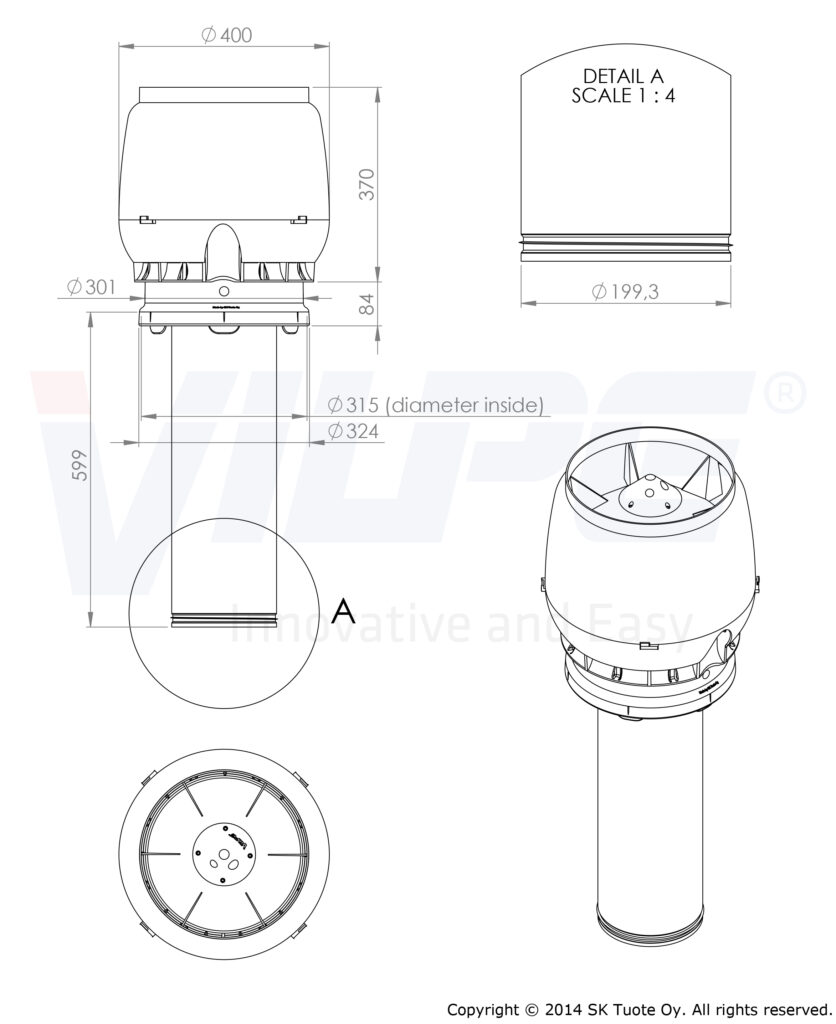

Mõõtmed: Toru Ø 200 mm, välimine Ø 300 mm, kõrgus 450 mm.

Sisaldab: väljapuhketoru, müts, kruvid.

Model
Product number791222
LVI Code7814892
EAN Code6410457912223
Color | RR33 | RAL9005
Weight Gross: 8.711kg, Net: 7.302kg
Product number791224
LVI Code7814894
EAN Code6410457912247
Color | RR32
Weight Gross: 8.711kg, Net: 7.302kg
Product number791226
LVI Code7814896
EAN Code6410457912261
Color | RR11
Weight Gross: 8.711kg, Net: 7.302kg
Product number791227
LVI Code7814897
EAN Code6410457912278
Color | RR23 | RAL7015
Weight Gross: 8.711kg, Net: 7.302kg
Product number791228
LVI Code7814898
EAN Code6410457912285
Color | RR29 | RAL3009
Weight Gross: 8.711kg, Net: 7.302kg
Product number791229
LVI Code7814899
EAN Code6410457912292
Color | RR750 | RAL8004
Weight Gross: 8.711kg, Net: 7.302kg
Product number791221
LVI Code7820449
EAN Code6410457912216
Color
Weight Gross: 8.711kg, Net: 7.302kg
SKU: N/A Category:
Share product page
Print pdf
Duct size200 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws

Download CAD Models

Download DWG-file
79122x.dwg
MagiCAD file

Materials & Installation
