E190P/Ø125/700 katuseventilaator

E190P/Ø125/700 katuseventilaator

Kirjeldus: Isoleeritud katuseventilaator, sisemine toru tsingitud. VILPE läbiviik vastavalt katusematerjalile on vaja eraldi.

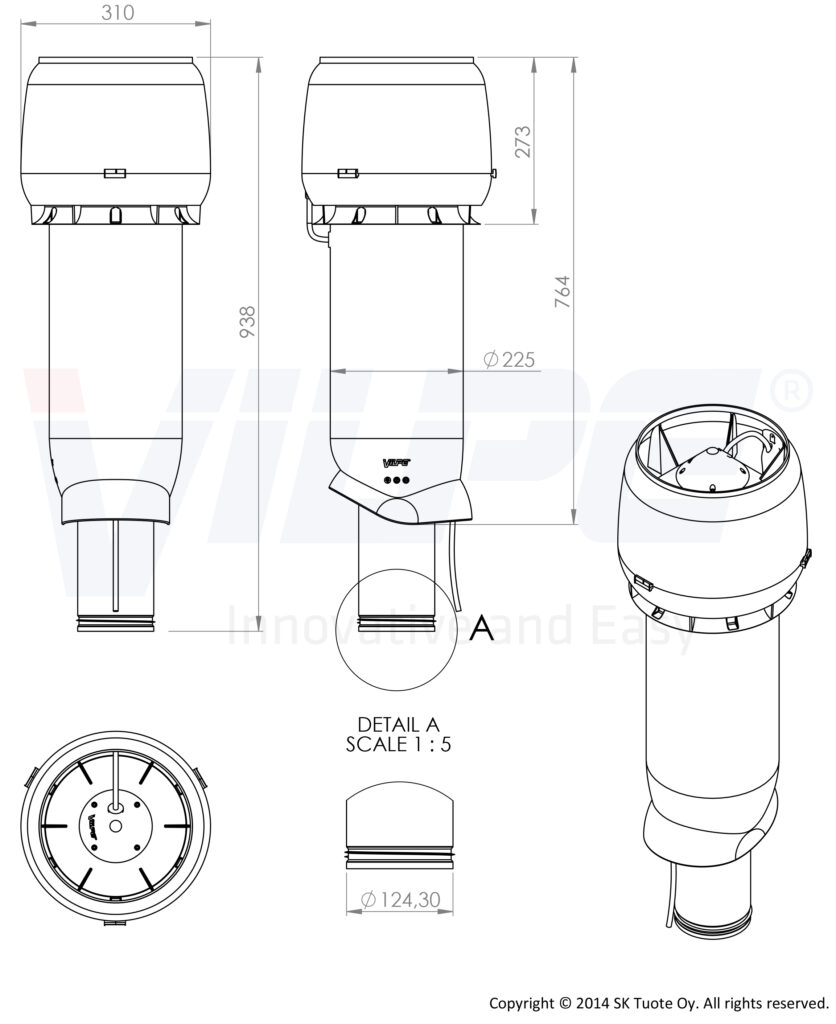

Mõõtmed: Kanali suurus Ø 125 mm, välisläbimõõt Ø 225 mm, kõrgus 700 mm.
Sisaldab: Katuseventilaator, kruvid, paigaldus-, kasutus- ja hooldusjuhend.

Model
Product number73531
LVI Code7820628
EAN Code6417323735313
Color | RAL7040
Weight Gross: 9.018kg, Net: 7.929kg
Product number73534
LVI Code7813020
EAN Code6417323735344
Color | RR32 | RAL8019
Weight Gross: 9.045kg, Net: 7.956kg
Product number73536
LVI Code7813023
EAN Code6417323735368
Color | RR11 | RAL6020
Weight Gross: 9.045kg, Net: 7.956kg
Product number73537
LVI Code7813018
EAN Code6417323735375
Color | RR23 | RAL7024
Weight Gross: 9.045kg, Net: 7.956kg
Product number7353D
LVI Code7820615
EAN Code6410457657100
Color | RR2H3 | RAL7016
Weight Gross: 9.045kg, Net: 7.956kg
SKU: N/A Category:
Share product page
Print pdf
Duct size125 Ø
EPD LinkEPD-portal
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,23 A
Rotation speed (rpm)2350 rpm
Capacitor1,5 µF
Power52 W
Fan typeAC

Performance data graphs

VILPE E190 - ISO 5221:1984 - ISO 3471:1988

Air density: 1.2

10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V

Download CAD Models

Download DWG-file
7353x.dwg
MagiCAD file
